Description

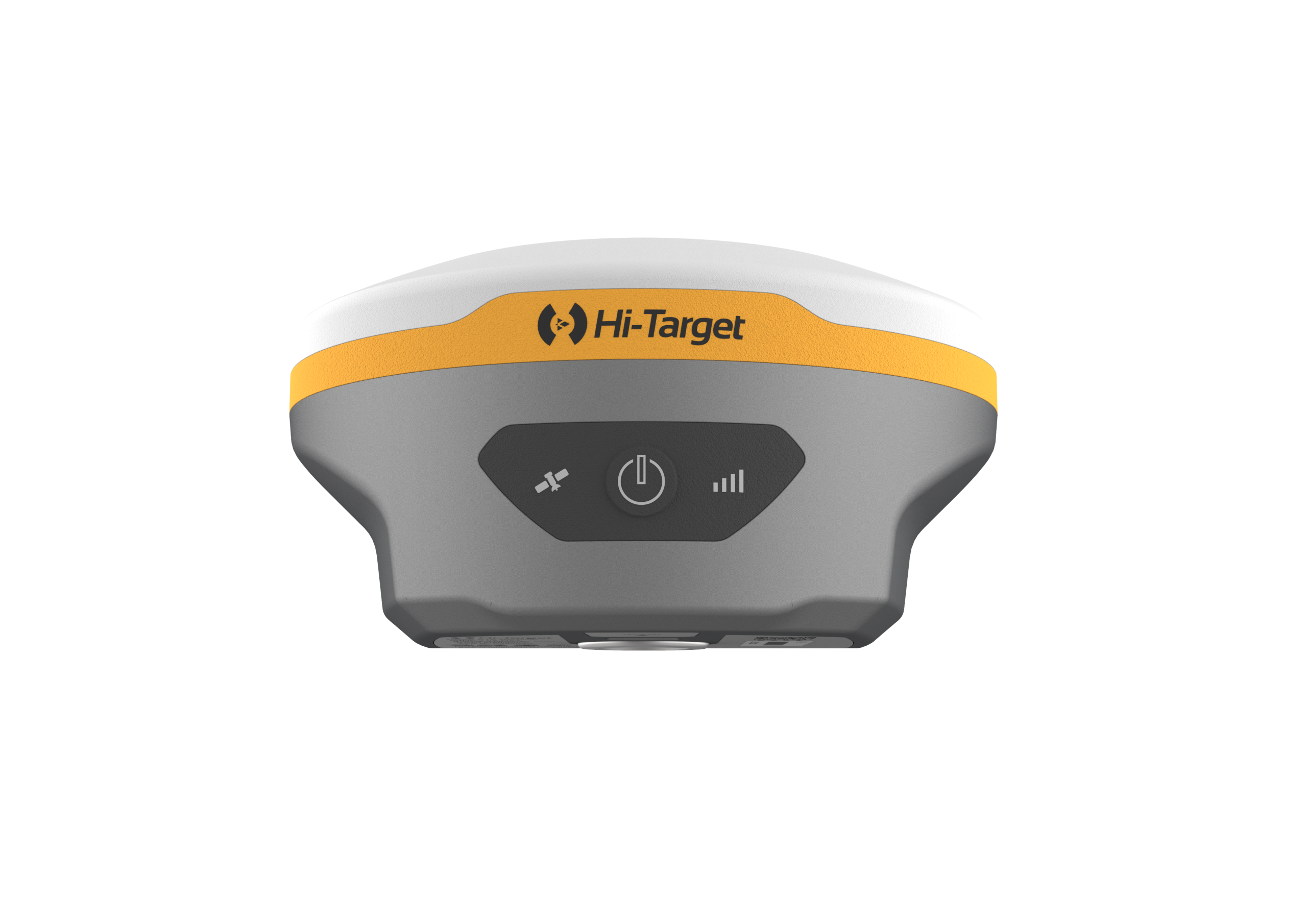

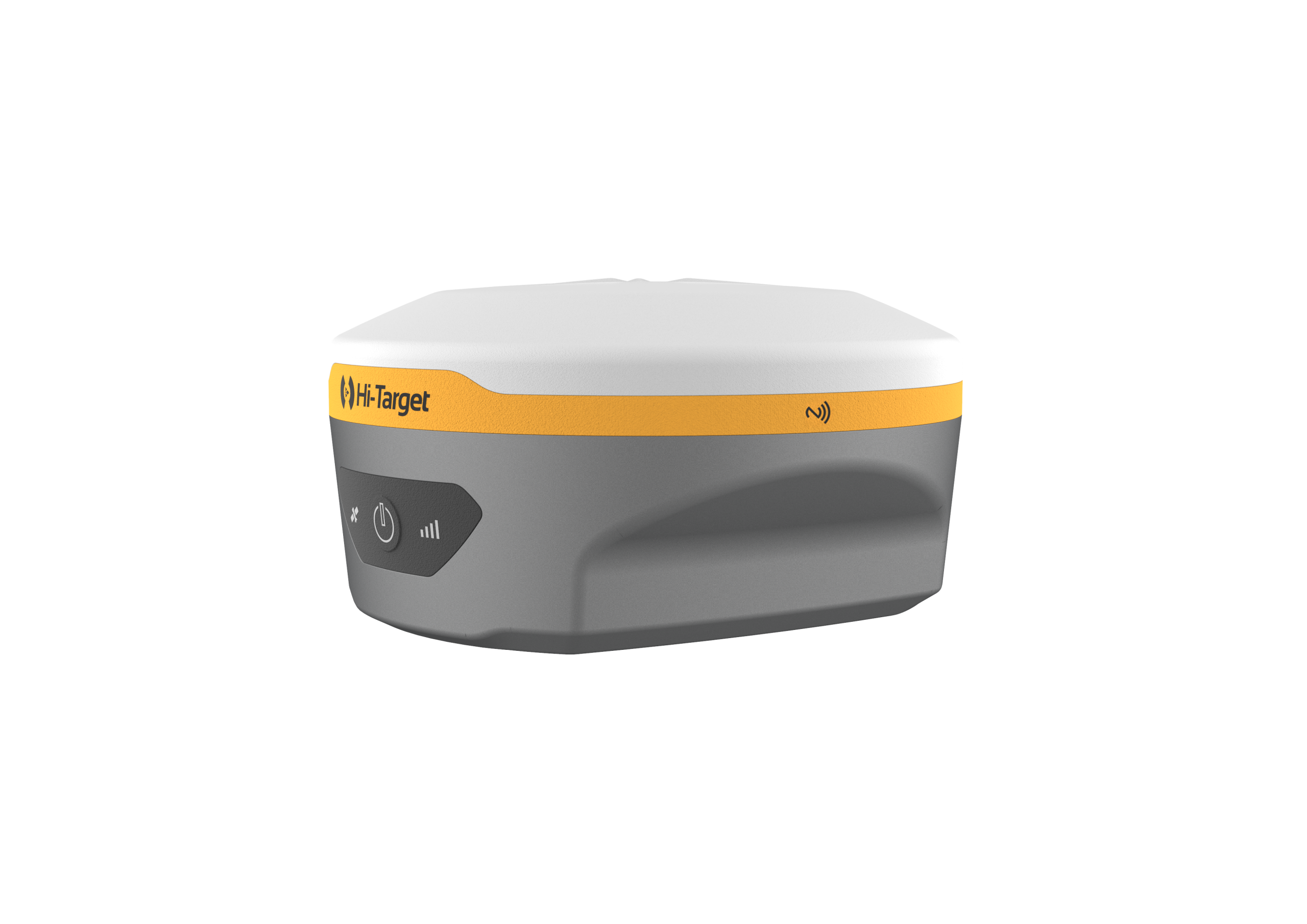

V600L Laser RTK System
Hi-Target’s next-generation Laser RTK combines high-precision laser surveying, visual targeting, and automotive-grade IMU to deliver fast, non-contact measurements—even in GNSS-denied environments such as under bridges, inside fenced zones, or across ditches. With a built-in LoRa radio offering a working range of over 15 km, it achieves up to 2 cm accuracy, significantly improving field efficiency for safer, faster, and more reliable measurements in complex terrain.

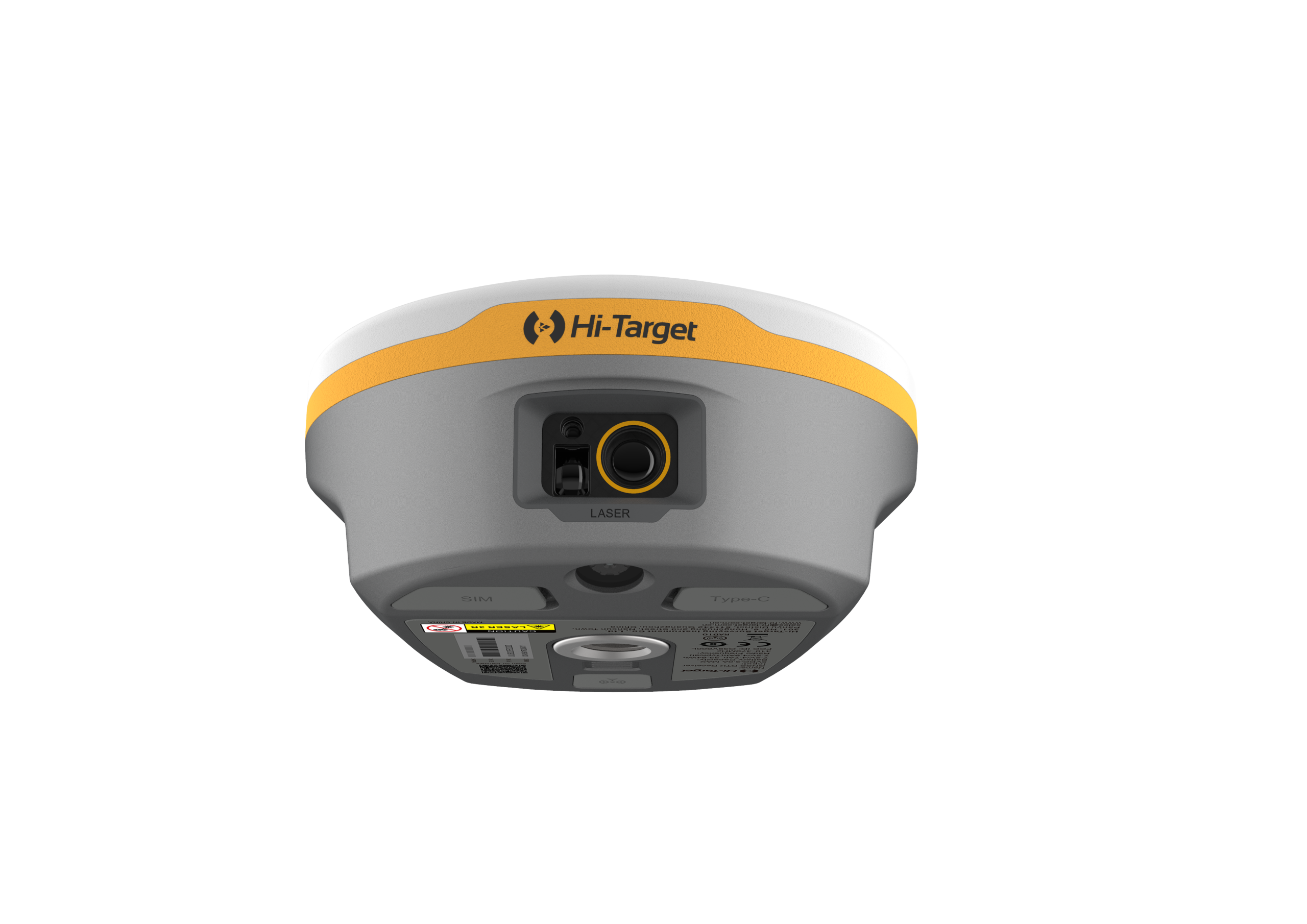

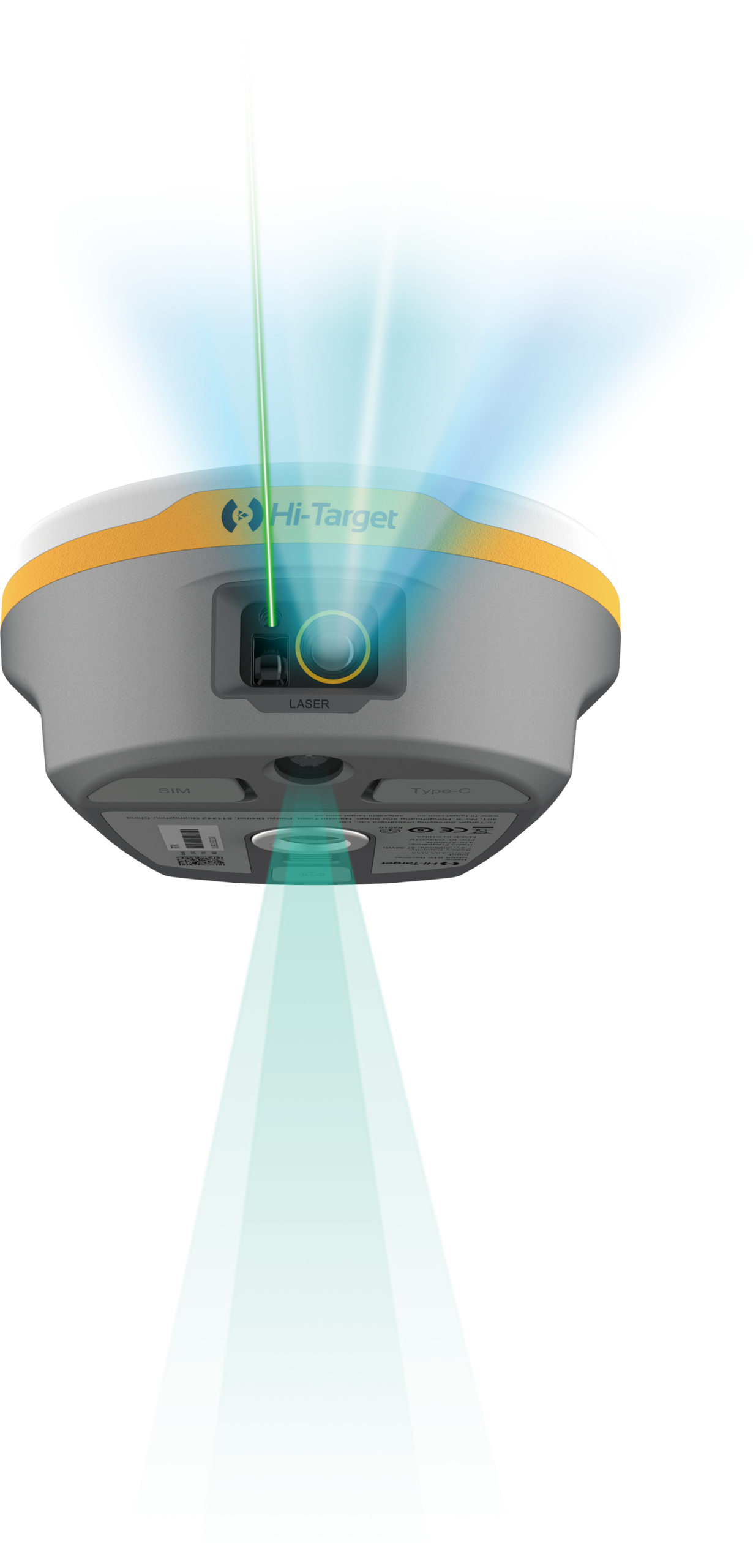

Reliable High-Precision Laser Surveying
By combining laser and visual technologies, the system delivers non-contact measurements with an accuracy of up to 2 cm within a range of 10 m, enabling confident operation in GNSS-denied environments such as under bridges, inside fenced zones, or across ditches — all from a safe and convenient distance.
Automotive-grade IMU
An automotive-grade IMU eliminates initialization steps, allowing instant startup with up to 40% better stability and accuracy, even when working on uneven or rugged terrain.

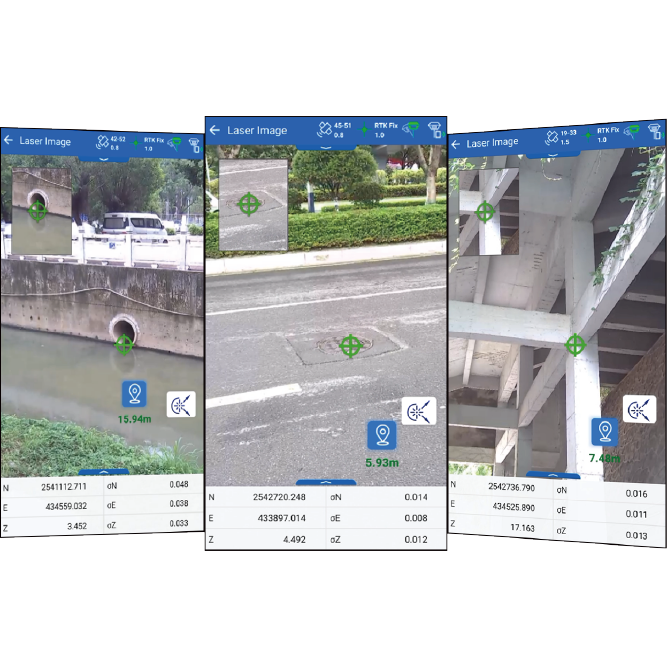

Visual Laser Targeting
Laser and imaging technologies are seamlessly integrated to display the laser spot directly on screen, enabling fast, intuitive aiming with no guesswork and no additional steps.

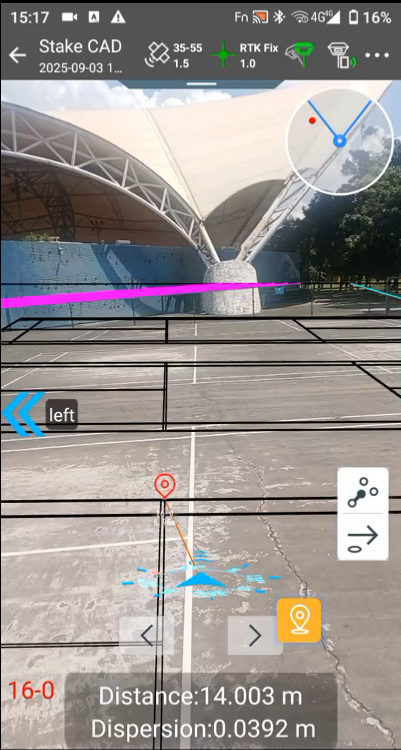

Real-Scene CAD Stakeout
A high-performance CAD engine combined with real-world imagery delivers a clear, visual stakeout experience — helping users stake with confidence and boost field efficiency by up to 50%.
Product Parameters
H: 8 mm+0.7 mm/°tilt (0~60°)
V: 15 mm+0.7 mm/°tilt (0~60°)
1408
Channels
BDS/GPS/GLONASS/GALILEO/ QZSS/NavlC/SBAS/PPP
Signal tracking
2 cm within 10 m
Laser Measurement Accuracy
64 GB ROM
Data Storage
2 cm
Image Stakeout Accuracy
