Description

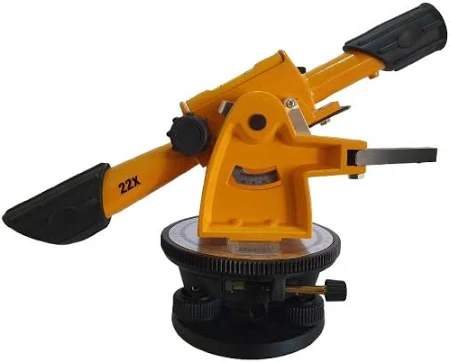

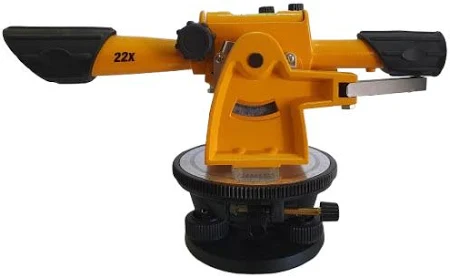

The TL22X Transit Level is versatile, affordable, and designed for basic levelling and vertical alignment applications. 15-minute horizontal circle is graduated in single degrees with vernier for levelling and turning angles. Vertical arc reads to degrees (45° – 0 – 45°) for alignment and basic slope applications. The TL22X Transit Level Top-mounted levelling vial for effortless viewing and levelling instrument. Tangents and locking clamps for precise movement control and bringing your instrument quickly on target. Three screw levelling base with 5/8-11 thread for mounting to tripod. Built-in sunshade with rubber eyepiece for clear sighting.
- 22 x power magnification
- ±1/4″ accuracy at 100-ft (6mm @ 30m)
- 200′ (60m) working range
- 360° Graduated horizontal circle in 1-degree increments for layout applications
- Top-mounted bubble vial for easy viewing
